| | APPLICATION | Suitable for Glass paper/PET/Copper foil/Aluminum foil. | FEATURES | The series offers precision slitting of 5-20mm material. Specially designed rollers provide length wise and cross accuracy. | | Simplified construction ensures minimum trouble. | | High speed slitting performance creates high productivity. When requested a wide range of optional accessories are available for more convenient and versatile operations. |
| | | | MAIN TECHNICAL PARAMETERS: | |

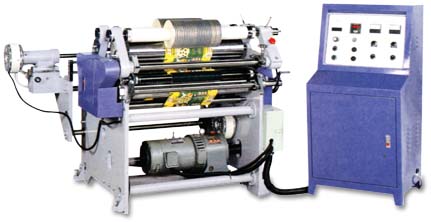

| MODEL | KH-J650 | | Unwind width | 200-650 mm | | Unwind diameter | 500 mm(MAX.) | | Rewind width | 5-650 mm | | Rewind diameter | 400 mm(MAX.) | | Inside diameter of core | 3" | | Machine speed | 0-120 M/min |
| | |  | Due to machine development,above information may be changed at any time without prior notice. | | The actual specification of machine accordings to the quotation. |
|
|
