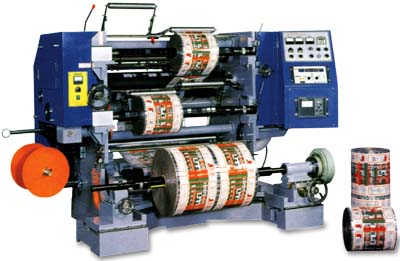

| | APPLICATION | Suitable for composite films. | FEATURES | The KH-1000 series of slitting machines create a superior slitting performance, their design and engineering make them especially excellent for slitting composite films and various other material. The entire machine is quality constructed to achieve high levels of reliability, and offer ease of operation,with a wide variety of optional equipment available such as line & edge position controllers(LPC), automatic tension controllers.etc,this series of slitting machine provides the maximum flexibility for slitting operations. |
| | | | MAIN TECHNICAL PARAMETERS: | |
| MODEL | KH-K1000 | KH-K1300 | KH-K1600 | | Unwind width | 300-1000 mm | 400-1300 mm | 600-1600 mm | | Unwind diameter | 800 mm | | Rewind width | 25-1000 mm | 25-1300 mm | 25-1600 mm | | Rewind diameter | 400 mm(MAX.) | | Inside diameter of core | 3" | | Machine speed | 0-200 M/min |
| | |  | Due to machine development,above information may be changed at any time without prior notice. | | The actual specification of machine accordings to the quotation. |
|
|
