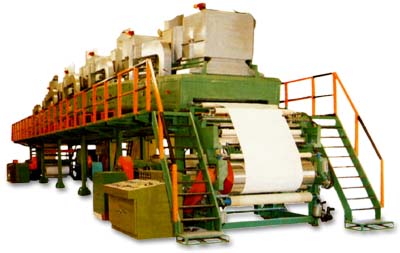

HOME > Plastic Injection Molding Machine > Coating Machine for Various Adhesive Tapes > SFC Series Soft Film Coating Units


APPLICATION
Suitable for PVC tape/PE tape.
FEATURES
Special designs,suitable for various kind of materials.
Auto tension control.
Auto temperarure control to suit refresh materials.
Spcial designs for heating system,high efficiency.
According to different types to design different coating method.

MAIN TECHNICAL PARAMETERS:
MODEL
SFC-500
SFC-1000
SFC-1300
SFC-1600
Vaild width
500 mm
1000 mm

1300 mm

1600 mm
Mechanical speed
1-10 M/min
1-15 M/min
1-25 M/min
1-25 M/min
Coating average degree
± 0.025 mm
Rewinding Epc
± 3 mm
Mechanical power
10-25 HP
20-45 HP
30-80 HP
40-100 HP
Oven length
According to the customer the request proceeds the design
Heating
Steam/Hot blast/Heat conductive oil/Electricity

Due to machine development,above information may be changed at any time without prior notice.
The actual specification of machine accordings to the quotation.
