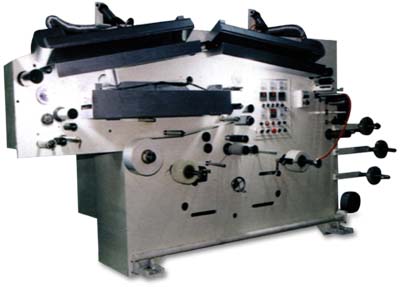

HOME > Plastic Injection Molding Machine > Coating Machine for Various Adhesive Tapes > KH-112 Sealing Tape Coater


APPLICATION
Suitable for sealing tape.
Material: PET/BOPP/HDPE
Adhesives: Oil and Water-based adhesives
FEATURES
Coating methods: Dies coating
Drying & heating methods: Electric heater
Temperature control: Auto-temperature control
Unwinding types: Single-shaft multi-roll synchronous unwinding
Rewinding types: Double-shaft multi-roll rewinding
Tension control: Manual

MAIN TECHNICAL PARAMETERS:
Product width10 mm or 15 mm
Production capacity12 rolls
Speed10-15 M/min
Material diameter400 mm
Paper tube inner diameter3"
Coating thickness0.02-0.05 mm
Even coating thickness±0.0015 mm
Product diameter370 mm(1000M)
Main motor1/2 HP
Rewinding motor1/2 HP
Drying power10 kw

Due to machine development,above information may be changed at any time without prior notice.
The actual specification of machine accordings to the quotation.
