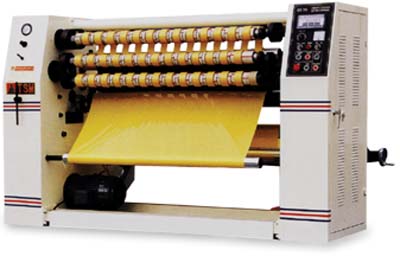

HOME > Plastic Injection Molding Machine > Various Equipment for Producing Adhesive Tape > KH-210 OPP Tape Slitter Rewinder


APPLICATION
Suitable for OPP adhesive tape/glass paper tape.
FEATURES
Centralized control panel:All operation controls. For this machine are centralized in a control panel.
Three-step length setting:This length setting provides extremely smooth rewinding operation to gives accurate rewinding length.
Automatic shaft change:Once the rewinding operation is accomplished,the machine will automatically perform shaft changes for convenient and wfficient operations.
Crowned stretch Roll:The streth roll is specially designed to eliminates tape wrinkling during extension and feed.
Pneumatic brake:Brings the machine to an immediate halt for accurate positioning and labelling.

MAIN TECHNICAL PARAMETERS:
Valid width
1350 mm1000 mm
Max. diameter of rewinding
120 mm 120 mm
Max. diameter of unrewinding
600 mm 600 mm
Min. slitting width
12 mm 12 mm
Diameter of paper core
76.2 mm 25.4-76.2 mm
Slitting machine
0-180 M/min 0-180 M/min
Main motor
5 HP5 HP

Due to machine development,above information may be changed at any time without prior notice.
The actual specification of machine accordings to the quotation.
