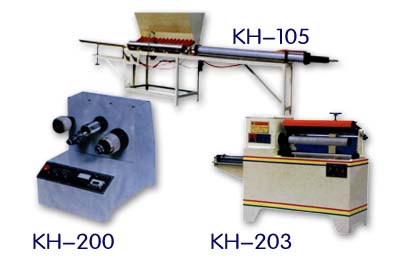

Name:Core Loader
Type:KH-105 Series
APPLICATION
The machine is designed for automatic loading and unloading of paper cores from the rewinding shaft.
MAIN TECHNICAL PARAMETERS:
MODEL
1 M
1.3 M
1.6 M
Working width
1000 mm 1300 mm 1600 mm
Paper core diameter
25.4-76.2 mm 25.4-76.2 mm76.2 mm
Working air pressure
5 kg/cm2 5 kg/cm2 5 kg/cm2

Name:Mini Doctor Rewinder
Type:KH-200 Series
APPLICATION
This unit is designed for rewinding poorly tensioned rolls onto new cores to maintain product consistency and eliminate waste.
MAIN TECHNICAL PARAMETERS:
Maximum rewinding diameter
300 mm
Maximum rewinding width100 mm
Paper core inside diameter25.4-76.2 mm
Rewinding speed0-100 M/min

Name:Core Cutter
Type:KH-203 Series
APPLICATION
Cutting paper core.
MAIN TECHNICAL PARAMETERS:
Maximum width of cut
500 mm
Minimum width of cut12 mm
Paper core inside diameter76.2 mm
Paper core thickness3-5 mm
Motor2 HP
Working air pressure5 kg/cm2

Due to machine development,above information may be changed at any time without prior notice.
The actual specification of machine accordings to the quotation.
