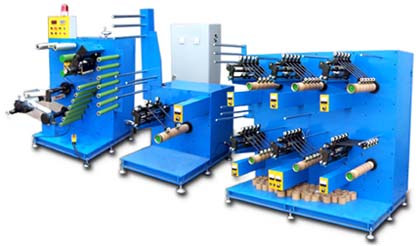

HOME > Plastic Injection Molding Machine > Other Machine > ST-302 Slitter and Twister


APPLICATION
Suitable for Masking and Kraft papers.

MAIN TECHNICAL PARAMETERS:
Avild width380 mm
Maximum width of unwinding1200 mm
Minimum width of slitting5-6 mm
Inside diameter of core3"paper core/PE core
Rewinding length3000-6000 mm
Silitting methoodUpper circular blades(100mm);
 Lower circular blades(80mm)
Machine speed0-100 M/min

Due to machine development,above information may be changed at any time without prior notice.
The actual specification of machine accordings to the quotation.
