APPLICATION

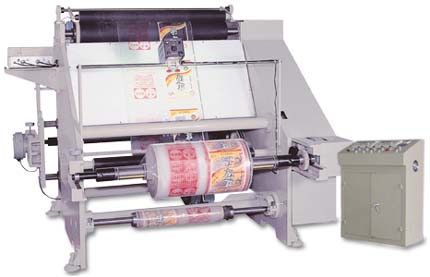

C-1000 Model High-speed Product-inspecting Rewinder is mainly in the soft packaging induetry for the inspection and rewinding of the product being printed.Witch is standard machine developed to prevent the rejection occurred the printing form flowing into the latter process.
FEATURES
Reversible rolling function
Unrolling LPC automatic correction & control system; Rolling & unrolling automatic control tension
Automatic calcuating meter and automatic stop function; Stop function for matcrial-breaking test
Automatic stop function for material-breaking

MAIN TECHNICAL PARAMETERS:
Width of material film300-1000 mm
Diameter of material web600 mm(MAX.)
Rewind width1000 mm(MAX.)
Inside diameter of core3"
Machine speed0-150 M/min

Due to machine development,above information may be changed at any time without prior notice.
The actual specification of machine accordings to the quotation.
